Gen-3 TLX4x4 HD Alloy UTE Trays!
Are you searching for a UTE tray that offers top-notch performance in a lightweight design? Look no further. TLX4x4’s Gen-3 HD Alloy UTE Trays are crafted from premium alloy materials, ensuring impressive strength without adding unnecessary weight.
These compact trays are perfect for various applications and are available for popular UTE models, the Toyota Landcruiser 79, and American trucks.
TLX4x4 Gen-3 HD Alloy UTE Trays: Tailored Dimensions and Options
TLX4x4 offers a comprehensive range of Gen-3 HD Alloy UTE Trays to suit your specific UTE model and needs.
Available in three configurations for Common UTEs:

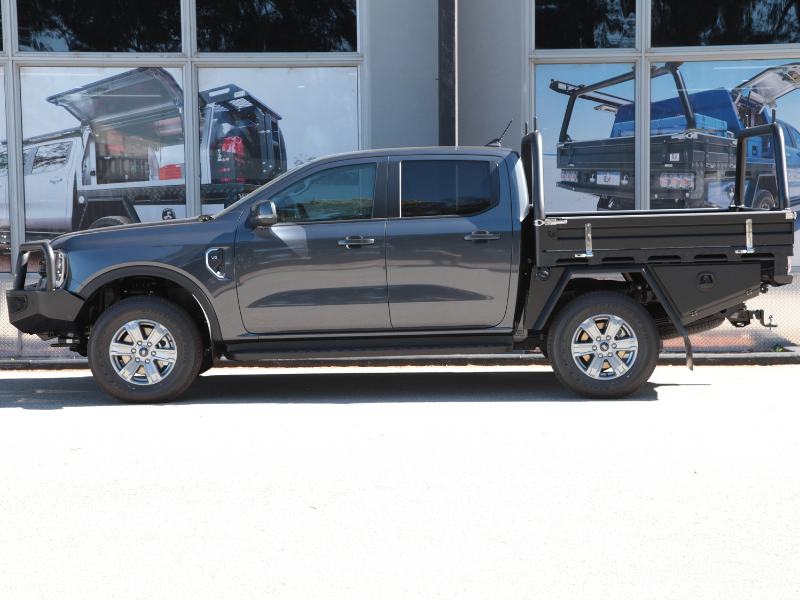

Dual Cab: Measuring 1800mm (L) x 1850mm (W) x 870mm (H), this option provides a well-balanced combination of load space and dual cab passenger comfort.
Extra Cab: At 2100mm (L) x 1850mm (W) x 870mm (H), the Extra Cab tray offers extra load carrying and payload capacity.
Single Cab: This configuration maximises load space with dimensions of 2400mm (L) x 1850mm (W) x 870mm (H), ideal for larger equipment or heavy-duty applications.
For the legendary Toyota Landcruiser 79, TLX4x4 provides two tray sizes:
Dual Cab: Matching the footprint of the Common UTE Dual Cab at 1800mm (L) x 1850mm (W), this tray integrates seamlessly with the Landcruiser’s design. The increased headboard height of 1010mm (H) matches the taller cabin seamlessly.
Single Cab: This option mirrors the dimensions of the Single Cab for Common UTEs at 2400mm (L) x 1850mm (W), but with an increased headboard height of 1010mm (H).
American Trucks
Recognising the diverse needs of American truck owners, TLX4x4 offers two lengths for Gen-3 HD Alloy Trays: 2100mm and 2400mm. All American Truck trays share a standard width of 2000mm (W) and a headboard height of 960mm (H).
Extensive Options
TLX4x4 understands that a one-size-fits-all approach only works for some UTE owners. That’s why we offer a variety of options to personalise your Gen-3 HD Alloy Tray:
- Tray Finish: Choose from a sleek, complete tray in natural alloy or a stylish black finish.
- Dropsides: Tailor the look and functionality of your tray with dropsides available in natural alloy, black, or colour matched to your vehicle.
- Side Toolboxes: Rear side toolboxes are standard with all trays and chassis mounted canopies. Front side toolboxes can be added to some extra and single cab vehicles. The toolbox lids are available in natural alloy, black or colour matched.
By combining exceptional build quality with a wide range of dimensions and customisation options, TLX4x4’s Gen-3 HD Alloy UTE Trays ensure you get the perfect fit and functionality for your specific UTE.
Ute Categories
Make & Model | Model Years |
| Toyota Hilux | 2005 onwards (MY05) |
| Ford Ranger | 2010 onwards (PX & NEWGEN) |
| Mazda BT-50 | 2011 onwards |
| Isuzu DMax | 2012 onwards (RT) |
| Holden Colorado | 2012 onwards (RG) |
| Volkswagen Amarok | 2022 onwards (New Ford shared platform only) |
| Nissan Navara | 2015 onwards (NP300) |
| Mitsubishi Triton | 2015 onwards (MQ) |
Others |
|
| Toyota Landcruiser 79 Utes | Includes Dual Cab & Single Cab models |
| Ram, GMC, Silverado, F-Truck | Enquiry Required |
A canopy can be fitted to any tray or chassis-mounted base of equal or longer length.
- 1500mm canopies are most popular on dual-cab vehicles
- 940mm canopies suit any size vehicle that needs usable tray space behind the canopy
- Full-length canopies provide maximum volume for work or recreational use
Standard Inclusions for All UTE Trays
Each tray comes with everything you need to get started:
Headboard
Topped with a robust 76.2mm x 4.25mm mandrel bent alloy head tube, the headboard provides a solid foundation for securing loads.
Headboard Uprights
These uprights, manufactured from high strength 100mm x 55mm x 4mm alloy C channel, ensure a secure connection between the headboard and the chassis.
Chassis Main Runners
The core of the tray’s structure is formed by 100mm x 50mm x 8mm alloy C channel chassis main runners, offering exceptional rigidity for heavy loads.
One-Piece Floor Sheet
A 4mm high-tensile 5083 Marine Grade alloy floor sheet provides a smooth, water-resistant load bed. This marine-grade alloy is known for its superior corrosion resistance, which ideal for harsh Australian conditions.
Integrated Rope Rails
Full-length 25mm x 3mm rope rails integrated into the tray sides offer convenient tie-down points for securing your cargo.
Extruded Dropsides
Constructed from robust 3mm extruded aluminium, the dropsides provide additional cargo capacity and can be easily removed when not required. Stainless steel hinges and latches ensure secure closure and long-lasting performance.
Standard Side Toolboxes
Two conveniently positioned side toolboxes behind the rear wheels offer valuable lockable storage for tools and equipment.
Side Coamings
4mm chequer plate side coamings add strength and a bit of contrast to the tray design, protecting the edges from wear and tear.
Adjustable Wheel Guards
Tailored for optimal tire coverage and debris protection, the 3mm heavy-duty alloy wheel guards are adjusted during fitting to accommodate various wheel sizes.
Tapered Rear Pressing
This design element enhances the tray’s aesthetics and provides additional clearance for larger loads.
Cab/Tray Infill Kit (where required
For certain UTE models, a custom cab/tray infill kit ensures a clean and seamless visual connection between the cab and the tray.
5mm Steel Welded Mounts
Heavy-duty 5mm steel welded mounts provide a secure and reliable connection between the tray and the UTE chassis.
Maxi-Lamp Sequential LED Taillights
These integrated taillights offer improved visibility and safety with their modern sequential lighting design and operation.
Natural Alloy Mill Finish
The standard finish is a sleek natural alloy mill finish, showcasing the high-quality aluminium construction.
Professional Fitting
All TLX4x4 Gen-3 HD Alloy UTE Trays are expertly fitted by qualified technicians to ensure a perfect fit and optimal performance.
Get in touch
Please contact our team at TLX for more information, or download the vehicle specifications below.
Optional Accessories
LX4x4 understands that every UTE owner has unique needs. To help you personalise your Gen-3 HD Alloy UTE Tray and maximise its functionality, we offer a wide range of high-quality accessories:
Cargo Management and Security:
Headboard Mesh
Protects the vehicle window and cab from damage.
Spare Wheel Carriers (Headboard Mounted):
A quick and easy way to store your spare wheel securely on the headboard.
1.5mm Stainless Steel Capping
An additional layer of 1.5mm stainless steel capping enhances the durability and appearance of your dropsides.
Lockable Rear Drawer
A lockable cassette style rear drawer maximises storage capacity and keeps gear safe and dry. Includes a clip on lid that can be used as a bench for cooking, eating or working. An optional lockable hinged lid with gas struts is also available.
Floor-Mounted Flush Lashing Rings
These convenient tie-down points provide additional options for securing your cargo within the tray.
Water Carrying and Utility Solutions
Integrated 60L Poly Water Tank
Stay hydrated and prepared on your adventures with an integrated 8mm welded, gravity-fed 60L poly water tank complete with a filler and tap.
Other Accessories
Removable Rear Hoop
Add versatility to your tray with a removable rear hoop, perfect for securing additional gear or mounting auxiliary lighting.
Undertray Spare Wheel Storage (LC79 Landcruiser):
Specifically designed for the Toyota Landcruiser 79, this undertray storage system keeps your spare wheel out of the way while providing easy access. Subject to suitable tyre sizes and may require the tray to be lifted slightly.
Canvas Roof Frame (for Front and Rear Hoops):
Create additional shade and weather protection with a canvas roof frame that attaches to your existing hoops.
Additional Considerations
Please note that depending on your specific vehicle type and desired configuration, additional costs may be incurred for:
Removal of Existing Tub or Tray
If your UTE currently has a tub or tray installed, its removal is necessary to install your new Gen-3 HD Alloy Tray.
Retrofitting Rear Safety hardware
Certain features like reverse cameras, sensors, and blind-spot monitor require retrofitting to ensure compatibility with your new tray. TLX4x4 can discuss these options with you to ensure a seamless transition.
